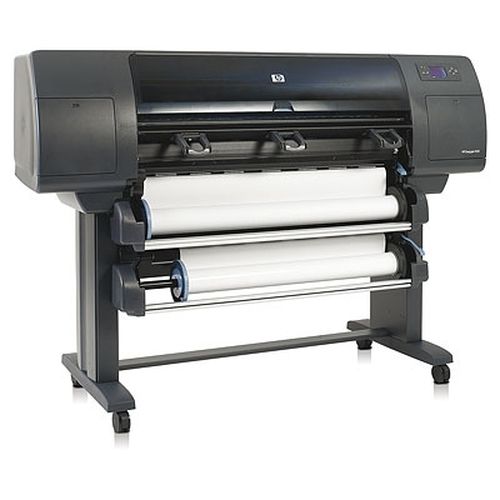

Designjet 4520ps 1067-mm (CM768A)

Printkwaliteit
Maximale resolutie:	2400 x 1200 DPI
Standaard printertalen:	PDF 1.5, PostScript 3
Printkleuren:	Zwart, Cyaan, Geel, Magenta
Meegeleverde drivers:	Ja

Papier
Maximale printafmetingen:	610 x 1067 mm
Maximumbreedte media:	1067 mm
Mediadikte:	0.4
Externe diameter rol:	18 cm
Roll-papier:	Ja

Printtechnologie
Aantal printcartridges:	4
Kleur:	Ja

Mediatypes
Glanzend papier:	Ja
Coated paper:	Ja
Fotopapier:	Ja
Opaque film:	Ja

Mediaformaten
Maximum rollengte:	175 m

Poorten & interfaces
Interface:	RJ-45, FireWire, EIO

Prestatie
Type processor:	Intel® Celeron®
Frequentie van processor:	2000 MHz
Opslagcapaciteit harde schijf:	160 GB
Maximum intern geheugen:	1,12 GB

Netwerk
Netwerkgereed:	Ja
Netwerkfuncties:	10/100/1000Base-T
Bekabelingstechnologie:	Gigabit Ethernet

Geluidsproductie
Geluidsniveau:	53 dB
Geluidsproductie (standby):	38 dB

Energie
Stroomvoorziening:	220 - 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz)
Stroomverbruik (PowerSave):	63 W
Stroomverbruik (in standby):	105 W
Typisch stroomverbruik:	500 W
Stroomverbruik (indien uit):	1 W

Eisen aan de omgeving
Temperatuur bij opslag:	-20 - 55 °C
Relatieve luchtvochtigheid, in bedrijf:	20 - 80 procent
Temperatuur, in bedrijf:	5 - 40 °C
Bedrijfstemperatuur, bereik:	41 - 104 °F
Luchtvochtigheid bij opslag:	0 - 95 procent

Gewicht en omvang
Afmetingen (BxDxH):	1930 x 800 x 1350 mm
Gewicht:	185 kg
Gewicht verpakking:	227,3 kg
Afmetingen verpakking (BxDxH):	2130 x 775 x 1320 mm
Afmetingen van het product wanneer het open is (LxBxD):	193 cm (76")
Maat:	106,7 cm (42")

Software
Meegeleverde software:	HP Designjet

Minimale systeemeisen
Minimale systeemeisen:	Intel Pentium 4 (1 GHz), 512 MB RAM, 2 GB HDD
Compatibele besturingssystemen:	- Windows Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP Home & Professional (32/64-bit), Server 2003 (32/64-bit) - Mac OS X v10.4, v10.5 - Linux

Certificaten
Energy Star-certificaat:	Ja

Overige specificaties
Lijnnauwkeurigheid:	+/- 0.1%
Minimum lijndikte:	0,07 mm
Printkwaliteit (kleur, presentatiekwaliteit):	2400 DPI
Printkwaliteit (zwart, concept):	1200 DPI
Printkwaliteit (zwart, standaard):	1200 DPI
Inktdruppel:	5 pl (C, M, Y), 15 pl (K)
Aanbevolen mediagewicht:	50 - 328
Spuitmondjes:	524
Maximum mediagewicht:	42
Ingebouwde webserver:	Ja
Maximum afmetingen (B x D x H):	1930 x 800 x 1350 mm
Minimum systeemeisen voor Macintosh:	PowerPC G3 / Intel Core, 512 MB RAM, 1 GB HDD
Aanbevolen systeemspecificatie:	Intel Pentium 4 (1 GHz), 1 GB RAM, 2 GB HDD
Aanbevolen systeemspecificatie Macintosh-configuratie:	PowerPC G4, G5 / Intel Core, 1 GB RAM, 2 GB HDD
JetDirect compatibele producten:	Ja
Maximum rolinvoer:	2

Unattended color production at low cost
? Take advantage of unattended color printing with two
long media rolls up to 175 meters (575 ft) and reliable
775-ml black, 400-ml color Original HP ink cartridges.
? Double your print capacity and truly maximize
productivity with HP Double Swath technology and
160 GB hard disk.
? Experience greater cost efficiency with free HP support,
HP supplies that deliver a better value, and finishing
options that save time and money.
Provides great possibilities to grow your
business
? Experience more possibilities to increase your personal
productivity with the HP Instant Printing Utility 2.0,
HP Embedded Web Server, and the optional Serif
PosterDesigner Pro for HP(1
.
? Turn your HP Designjet into a print workflow
management system with optional stacker and SCP
reprocontrol for HP(2.
? Produce excellent lines and images with patented HP
inks, printheads enabling 0.1% line accuracy(3, and HP
Professional Color technologies.
? Expand your business with high performance copy and
scan capabilities(4.
? Choose from a broad portfolio of over 35 Original HP
media for high-quality results from CAD drawings and
renders to presentations and posters.
Trusted integration in your IT environment
? Trusted connectivity and security-with built-in Gigabit
Ethernet networking, advanced access control, and
optional HP Jetdirect support for secure IPsec and IPv6(5.
A Linux PS driver offers additional support for Linux
users(6.
? Manage your HP Designjet, fleet of devices, and your
costs with HP Web Jetadmin and the embedded Web
server.
? Experience true peace of mind with a printer and
printing supplies you know you can trust?from a
company with years of experience and expertise.
