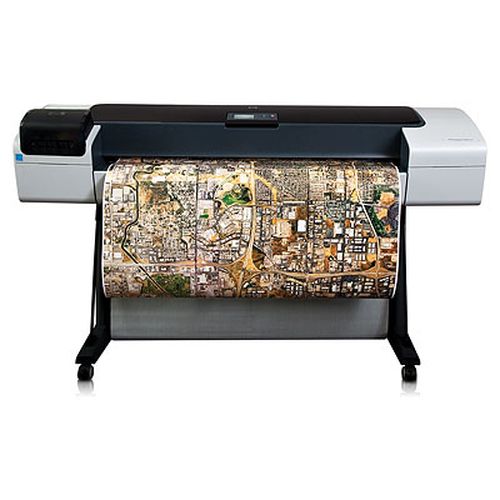

Achieve twice the productivity with two printers in one1 for medium-sized CAD/GIS workgroups.
Get more done in less time with fast setup, continuous printing and network sharing.
● Manage tight deadlines easily: print 2 A1-sized prints per minute using the Economode print setting
● Save time and paper with 2 online rolls and smart switching, enabling unattended printing
● Print continuously with reliable HP 300-ml matte black ink cartridges, a convenient front-loading top roll and media length tracking
● Print batch files2 without opening any application thanks to the free HP Instant Printing Utility and embedded Web server
● Enjoy easy sharing with a built-in network card
Make a real impact with clear, accurate drawings and colourful presentations.
● Reach a new level of accuracy and professionalism: achieve fine lines, rich dark blacks, true neutral greys and a range of vivid colours with HP Vivera inks and the 6-ink printing system
● Achieve exacting detail with 0.02 mm minimum line width3 and highly precise drawings with 0.1% line accuracy
● Create great prints with new, improved HP bond papers and HP Recycled Bond Paper (100% recycled base paper)
● Optimise blue prints using the new printing mode for generic natural tracing paper
Print confidently with this reliable and secure solution.
● Process complex files fast and accurately, with 32 GB of memory
● Free your network and workstation with reliable in-printer processing architecture
● Share this HP Designjet among authorised workgroups using built-in Gigabit Ethernet networking and Jetdirect support for secure IPsec and IPv6
● Secure disk erase and the external hard disk accessory4 provide even more security
● Do more with PostScript capabilities and experience greater operating system support with original HP-GL/2 and RTL
| Printkwaliteit | |
|---|---|
| Maximale resolutie: | 2400 x 1200 DPI |
| Standaard printertalen: | PCL 3,PDF 1.7,PostScript 3 |
| Printkleuren: | Zwart, Cyaan, Grijs, Magenta, Magenta, Matzwart Pigment, Geel |
| Papier | |
|---|---|
| Mediadikte: | 0.8 |
| Bovenmarge (rol): | 5 mm |
| Externe diameter rol: | 13,5 cm |
| Roll-papier: | Ja |
| Printtechnologie | |
|---|---|
| Kleur: | Ja |
| Aantal printcartridges: | 6 |
| Printkop: | 3 |
| Mediatypes | |
|---|---|
| Glanzend papier: | Ja |
| Coated paper: | Ja |
| Fotopapier: | Ja |
| Vinyl media: | Ja |
| Typen printmedia: | verbinding-papier, Gelaagd papier, Glanzend papier, Matpapier, Fotopapier |
| Mediaformaten | |
|---|---|
| Maximum rollengte: | 300 ft |
| Poorten & interfaces | |
|---|---|
| Interface: | Gigabit Ethernet, USB 2.0, EIO |
| Prestatie | |
|---|---|
| Intern geheugen: | 32768 MB |
| Opslagcapaciteit harde schijf: | 160 GB |
| Netwerk | |
|---|---|
| Netwerkgereed: | Ja |
| Netwerkfuncties: | Gigabit Ethernet |
| Voldoet aan industriestandaarden: | IEEE 8002.3, IEEE 8002.3u, IEEE 8002.3ab |
| Bekabelingstechnologie: | 10/100/1000Base-T(X) |
| Energie | |
|---|---|
| Stroomvoorziening: | 100 - 240V, 50/60Hz |
| Stroomverbruik (PowerSave): | 7 W |
| Stroomverbruik (in standby): | 27 W |
| Typisch stroomverbruik: | 120 W |
| Stroomverbruik (indien uit): | 0,1 W |
| Eisen aan de omgeving | |
|---|---|
| Temperatuur bij opslag: | -25 - 55 °C |
| Temperatuur, in bedrijf: | 5 - 40 °C |
| Luchtvochtigheid bij opslag: | 0 - 95 procent |
| Gewicht en omvang | |
|---|---|
| Afmetingen (BxDxH): | 1770 x 721,3 x 1049 mm |
| Gewicht: | 86 kg |
| Gewicht verpakking: | 115 kg |
| Afmetingen verpakking (BxDxH): | 1930 x 766 x 778 mm |
| Maat: | 111,8 cm (44") |
| Minimale systeemeisen | |
|---|---|
| Minimum systeemeisen voor Macintosh: | PowerPC G4/G5, Intel Core 1GB RAM 2GB HDD |
| Mac-compatibiliteit: | Ja |
| Minimale systeemeisen: | Intel Pentium, AMD K6/Athlon/Duron 1GHz 1GB RAM 2GB HDD |
| Compatibele besturingssystemen: | Windows 7 Windows 2000 Windows XP Home/Professional (32/64-bit) Windows Vista (32/64-bit) Windows Server 2008 (32/64-bit) Windows Server 2003 (32/64-bit) Mac OS X v10.4, v10.5 Novell NetWare 5.x, 6.x Citrix XenApp Citrix XenServer Linux |
| Certificaten | |
|---|---|
| Energy Star-certificaat: | Ja |
| Elektromagnetische compatibiliteit: | EU/EMC |
| Veiligheid: | EU, GOST |
| Certificering: | WEEE, RoHS, REACH, EuP, FEMP |
| Overige specificaties | |
|---|---|
| Lijnnauwkeurigheid: | +/-0.1% |
| Printsnelheid | |
|---|---|
| Printsnelheid lijntekening in kleur (ontwerp, US D gewoon papier): | 28s/p |
| Printtijd lijntekening in zwart-wit (concept, metrisch, US D, gewoon papier): | 28s/p |
| Minimum lijndikte: | 0,02 mm |
| Inktdruppel: | 6pl |
| Maximale printlengte: | 91 m |
| Aanbevolen mediagewicht: | 60 - 328 |
| Ondermarge (rol): | 5 |
| Linkermarge (rol): | 5 |
| Rechtermarge (rol): | 5 |
| Geluidsproductie | |
|---|---|
| Geluidskracht: | 6.2B(A) |
| Geluidsdruk: | 46 dB |
| Akoestische emissie (standby): | 4.4 |
| Geluidsdruk (standby): | 26 |
| Aanbevolen relatieve luchtvochtigheid bij gebruik: | 20 - 80 |
| Aanbevolen temperatuur bij gebruik: | 15 - 35 °C |
| Gewicht (imperiaal): | 189 |
| Maximale optische dichtheid (zwart): | 2.15 |
| Niet-bedrukbaar gebied (losse vellen): | 0.2 x 0.67 x 0.2 x 0.2'' |
